Gareth
McKINLEY, et al.
Fog Fence
Fog Fence
http://www.newyorker.com/tech/elements/could-harvesting-fog-help-solve-the-worlds-water-crisis?intcid=mod-latest
March 22, 2016
Could Harvesting Fog Help Solve the World’s Water Crisis?
Pauls
Toutonghi
…As Dar Si Hmad has reckoned with the cultural implications of fog harvesting, the technology itself has evolved. While the basic science at its heart is not new—Bartolomé de las Casas mentions it in his sixteenth-century magnum opus, “History of the Indies”—the advancement of the harvesting equipment, in recent years, has been significant. “By changing the size of the holes, and the size of the fibres, and thinking about the coating on those fibres, we’ve improved the fog-collecting efficiency by about five hundred per cent,” Gareth McKinley, a professor of teaching innovation at M.I.T.’s School of Engineering, has said. The nets in Morocco, their designers say, are more durable and easier for locals to repair than similar nets built in the nineteen-nineties and early two-thousands in Eritrea, Chile, and Yemen...
https://www.youtube.com/watch?v=P631ymG8or8
Voyage
of the Mimi - Season 1 Episode 10
Making Dew Water Water Everywhere - 1984
http://www.aqualonis.com/
Aqualonis GmbH
Obtaining drinking water with fog

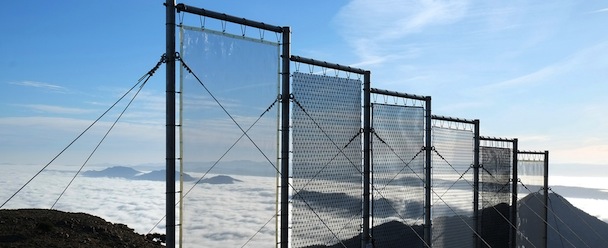

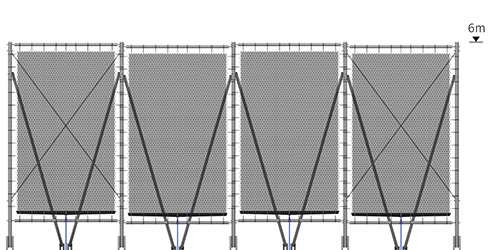

The CloudFisher is the first standard fog collector that can withstand high wind speeds. It is quick and easy to install, and requires no energy and only minimal maintenance. All the materials are food-safe. The CloudFisher can supply people with high-quality drinking water that meets WHO standards, and can also provide water for agriculture and forestry. It is mainly deployed in mountainous and coastal regions where rainfall is scarce but clouds and fog are plentiful.
Aqualonis GmbH has developed the CloudFisher Pro and CloudFisher mini for the Water Foundation Aqualonis GmbH, based in Munich, was founded to implement this technology worldwide. As a licensee of the WaterFoundation, the company markets and sells the CloudFisher products. Aqualonis develops, plans, builds and maintains fog water collection systems for non-profit and commercial projects alike. It is thus distinct from the WaterFoundation, a strictly non-profit organization that cannot engage in or accept liability for activities involving a commercial aspect.
The amounts yielded per fog-day differ according to region and season. They vary between 6 and 22 litres per square metre of net surface.
52.8 sqm total net surface
6 liter/sqm 316.8 liter
22 liter/sqm 1161,6 Liter

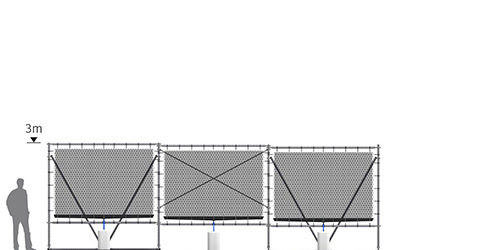

CloudFisher mini test collector and domestic user
16.5 sqm total net surface
6 liter/sqm 99 liter
22 liter/sqm 363 Liter
Each fog project starts with the collection of meteorological data on wind speeds and directions, relative humidity and temperature, precipitation and amounts of accumulated water. These findings are used to decide whether the location is appropriate for a fog water production system. How can the CloudFisher mini help with this?
US2014190352
-- LIQUID COLLECTING PERMEABLE STRUCTURES
A structure for collecting liquid droplets from an aerosol can have a structure and properties that are selected for efficient liquid collection. In particular, the strand radius and spacing of a mesh, and a material for coating the mesh, can be selected to provide efficient collection of water droplets from fog.
BRIEF DESCRIPTION OF THE DRAWINGS

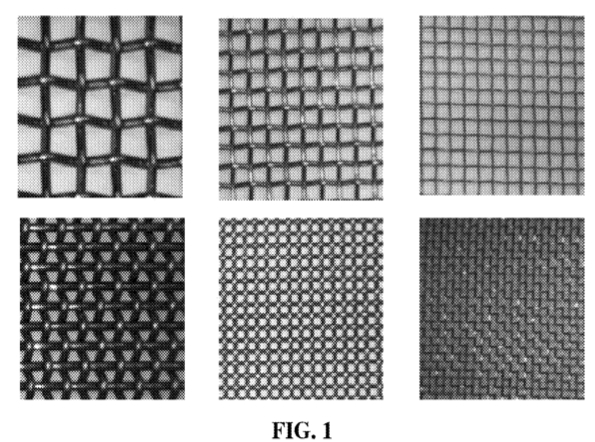

[0033] FIG. 1 is a series of microscope images of various permeable structures with different wire radii (R) and spacing ratio (D*).

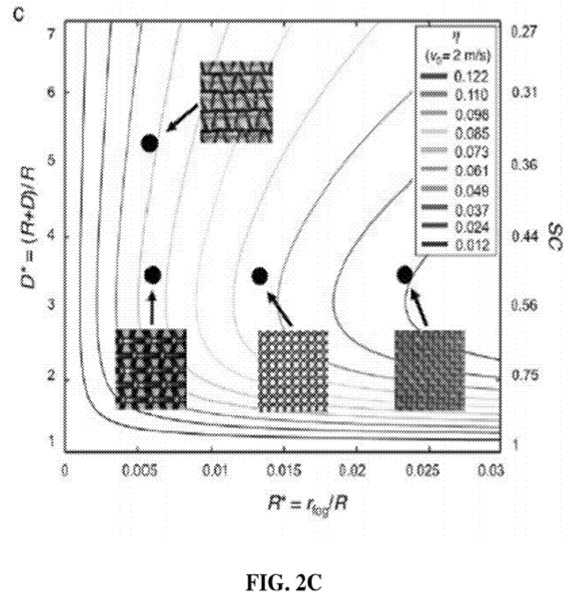

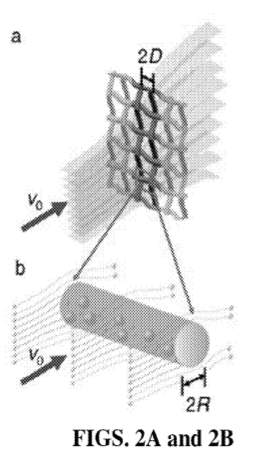

[0034] FIGS. 2A-2C are a diagrams depicting fog flow through a woven mesh surface, and a contour plot of the fog harvesting efficiency. FIG. 2A is an illustration indicating the stream surfaces of fog laden wind and their divergence after passing through a woven mesh surface. FIG. 2B is an enlarged drawing focusing on the interaction between incoming fog droplets and a horizontal mesh element. FIG. 2C is a contour plot of the fog harvesting efficiency (η) s a function of the ratio of radius of the fog droplets to the radius of the wire (R*=r fog/R) and the spacing ratio of the woven mesh (D*=(R+D)/R).

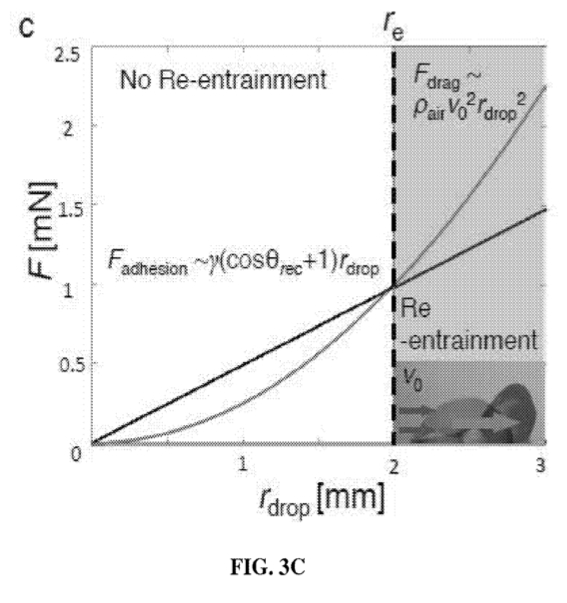

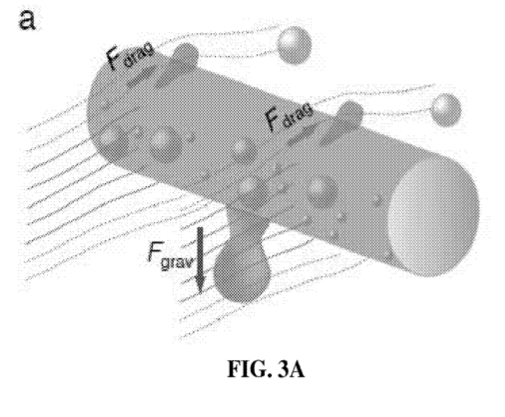

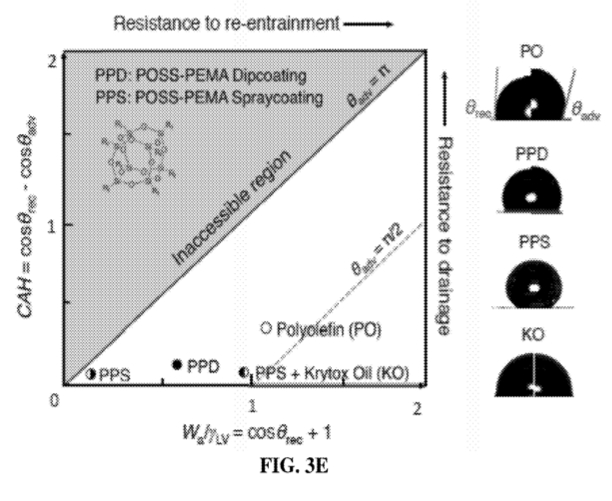

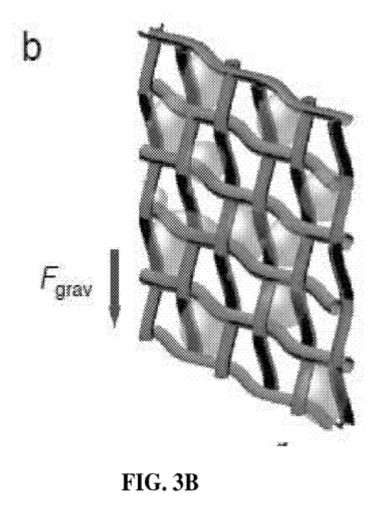

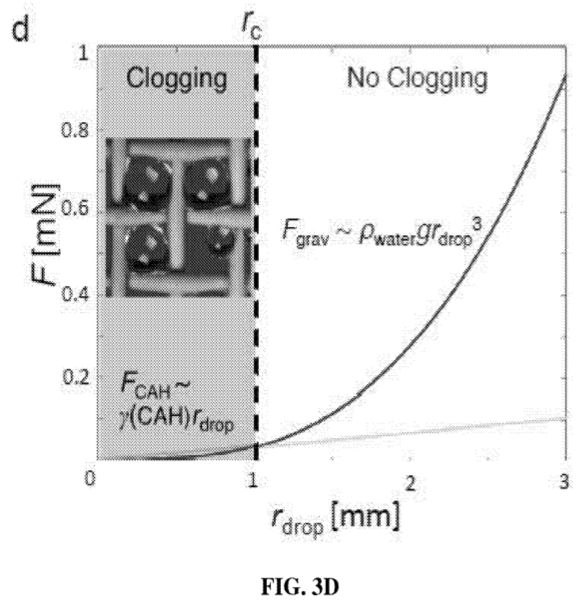

[0035] FIGS. 3A-3E represent two factors that reduce collection efficiency, and the surface modification design space that depicts the relative resistance to re-entrainment and drainage. Two factors that inhibit fog harvesting and reduce collection efficiency are ( FIG. 3A) re-entrainment of collected droplets in the wind and ( FIG. 3B) blockage of the mesh. FIG. 3C shows a plot that identifies the range of droplet sizes where the forces of adhesion dominate the drag forces, and establishes a criterion for a threshold droplet size for re-entrainment. FIG. 3D shows a plot that represents a second constraint arises from comparing the weight of the droplet with the surface pinning force arising from contact angle hysteresis. The threshold size where gravity dominates hysteretic pinning can be decreased by minimizing CAH=cos θ rec−cos θ adv. FIG. 3E shows a graph depicting the design space constructed from two dimensionless parameters related to work of adhesion (abscissa) and contact angle hysteresis (ordinate) depicts the relative resistance to re-entrainment and drainage. Measured values for droplets of water (V ″10 μL) deposited on several different coatings are shown in the plot. Wetting characteristics corresponding to a higher work of adhesion and lower contact angle hysteresis are ideal for the maximum fog collection efficiency.

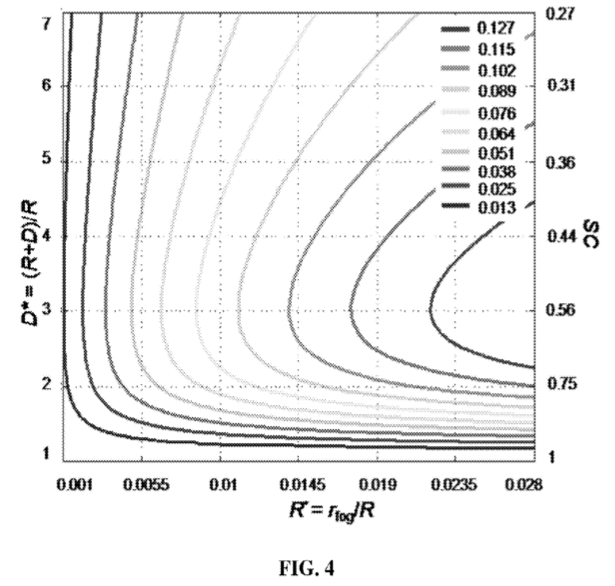

[0036] FIG. 4 is a contour map of the predicted aerodynamic capture efficiency of fog droplets of radius r fog using a mesh with a wire radius R and a spacing ratio D*, assuming a wind velocity of 2 m/s. The efficiency is expected to increase with decreasing R (increasing R*) and at an intermediate value of D*.

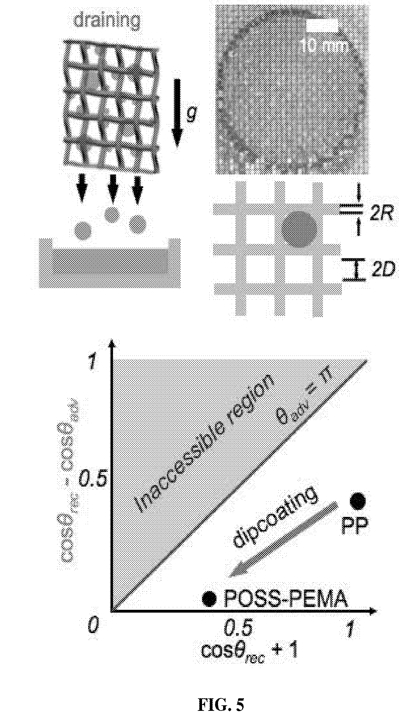

[0037] FIG. 5 illustrates clogging and bridging problems associated with draining of collected liquid and a how a coating having a low contact angle hysteresis and a high receding contact angle can address these problems.

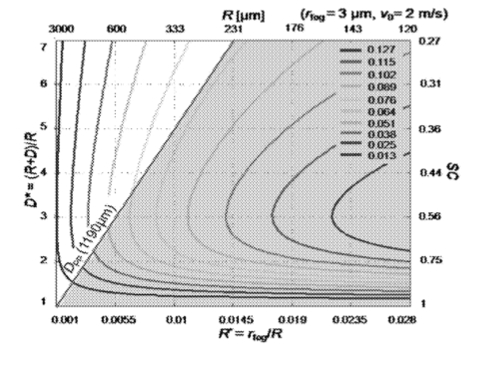

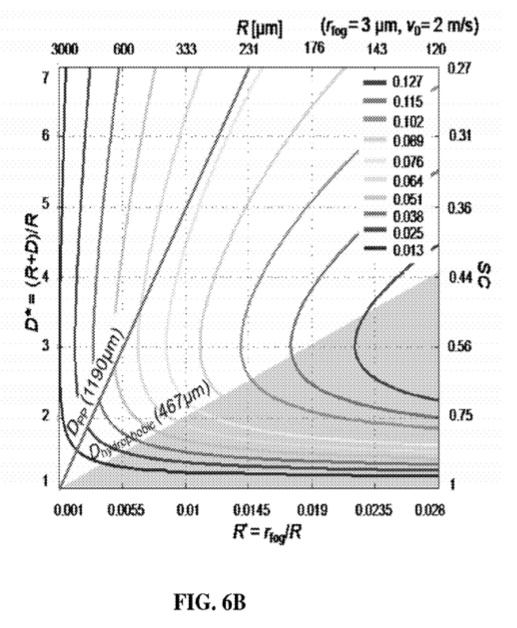

[0038] FIGS. 6A-6B show contour plots of fog harvesting efficiency of woven mesh surfaces with either ( FIG. 6A) a polypropylene (PP) coating, or ( FIG. 6B) a POSS-PEMA coating.

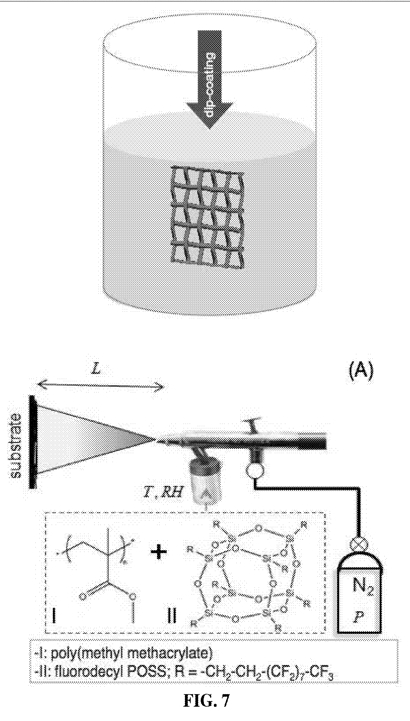

[0039] FIG. 7 illustrates a fabrication process of liquid-collecting permeable surfaces with different wettability by dip-coating and spray-coating.

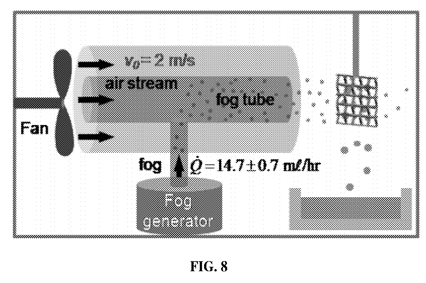

[0040] FIG. 8 is a schematic depiction of an artificial fog harvesting experimental setup. The experiments were carried out in a humidity chamber at T=26° C., and a relative humidity of 100% to eliminate the effects of condensation and evaporation of water.

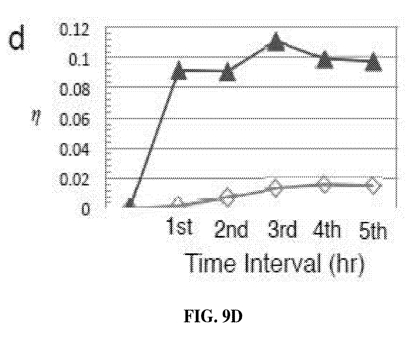

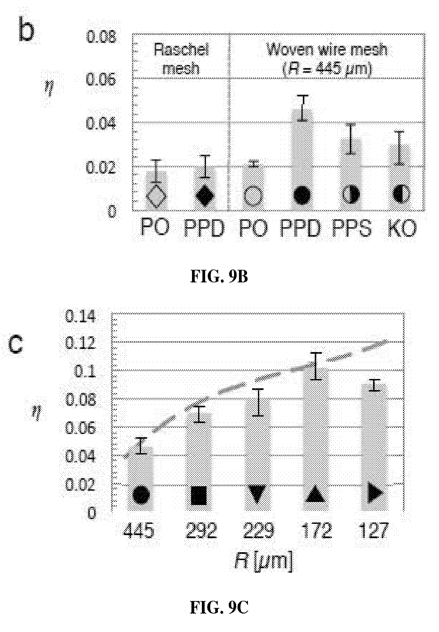

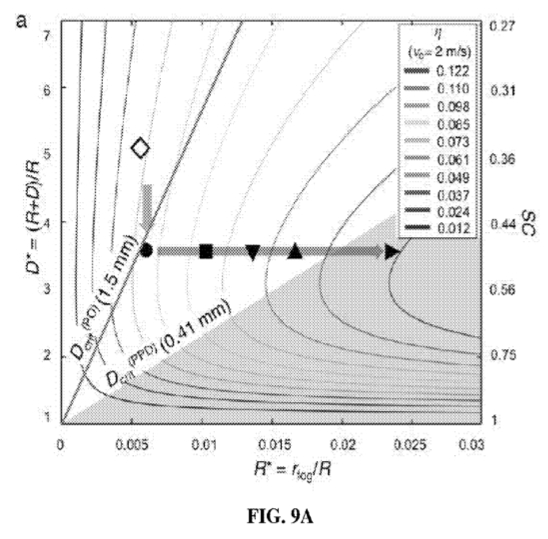

[0041] FIGS. 9A-9D illustrate results of fog harvesting experiments with woven wire meshes of different dimensions and surface coatings. FIGS. 9A-9C show design chart based on spacing ratio D* and dimensionless width R*. FIG. 9D displays the experimentally observed collection efficiency for the 5 dip-coated wire meshes along with coated and uncoated Raschel mesh.

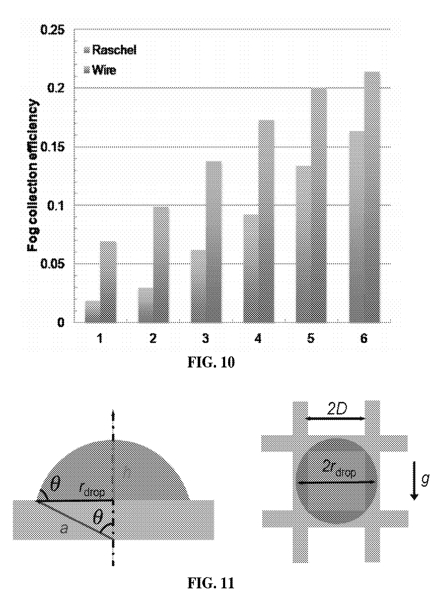

[0042] FIG. 10 is shows predicted fog harvesting efficiency for a double layered Raschel mesh (blue) and for a woven mesh with R=127 μm and D*=3.5 (red) under different conditions of fog droplet size and wind velocity. Velocities and fog droplet radii were: (1) 0.5 m/s and 3 μm; (2) 0.5 m/s and 6 μm; (3) 2 m/s and 3 μm (conditions used in lab experiments); (4) 2 m/s and 6 μm; (5) 8 m/s and 3 μm; and (6) 8 m/s and 6 μm (Chilean fog conditions).
[0043] FIG. 11 is a schematic diagram depicting a water droplet on a cylindrical mesh filament.

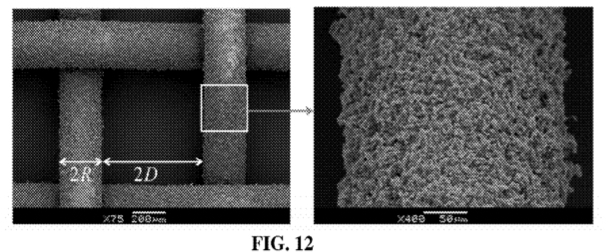

[0044] FIG. 12 is a micrograph depicting a coated mesh.

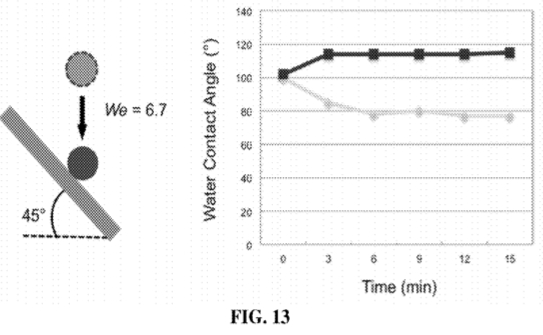

[0045] FIG. 13 is a diagram and graph depicting contact angles of water droplets on surfaces...
