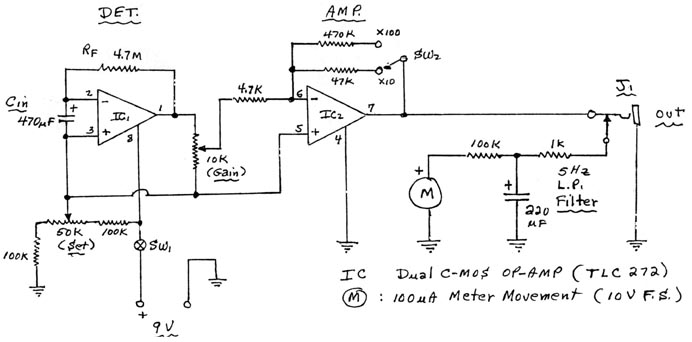

GW Circuit # 1400
(11-18-89)

Note: Unit is totally shielded in an aluminum box


Remarks:


1.  Use J₁ output jack for external filters and/or meters


2.  Use x10 amplifier gain for gravimeter response of g-field only. Use x100 amplifier gain for display of "cosmic" g-variations.


3. Use variable gain control to set system sensitivity.


4. Use set control to position response on meter.
